Description
Easy Rise Steps with Truck/Dock Platform
48 degree slope for extra safety and comfort, designed to allow user to descend the steps facing forward. Large platform with removable chain on end and both sides for 3-sided access. Welded steel tube and bar construction. Fitted with handlock anchorage.
Front feet fitted with protective plastic floor pads. Punched steel treads and large working top platform makes them ideal for loading and unloading items outside.
Wheels: 2 front swivel castors with 100mm diameter rubber tyred wheels with roller bearings, 2 rear axle-mounted 200mm wheels with rubber tyres and roller bearings.
Finish: All steelwork red epoxy finish.
Please Note: These Steps are made to order and non-returnable.
Tread width 750mm / Platform W x D: 750 x 1200mm
| No. of Treads (inc platform) |
Average working height mm |
Platform height mm |
Overall (H x W x D) mm |
Red Punched Steel mm |
|||
|---|---|---|---|---|---|---|---|
| Order Ref |
Wt. Kg |
||||||
| 3 | 2190 | 690 | 1680 x 960 x 1680 | WGS680 | 80 | ||
| 4 | 2420 | 920 | 1910 x 960 x 1870 | WGS681 | 89 | ||

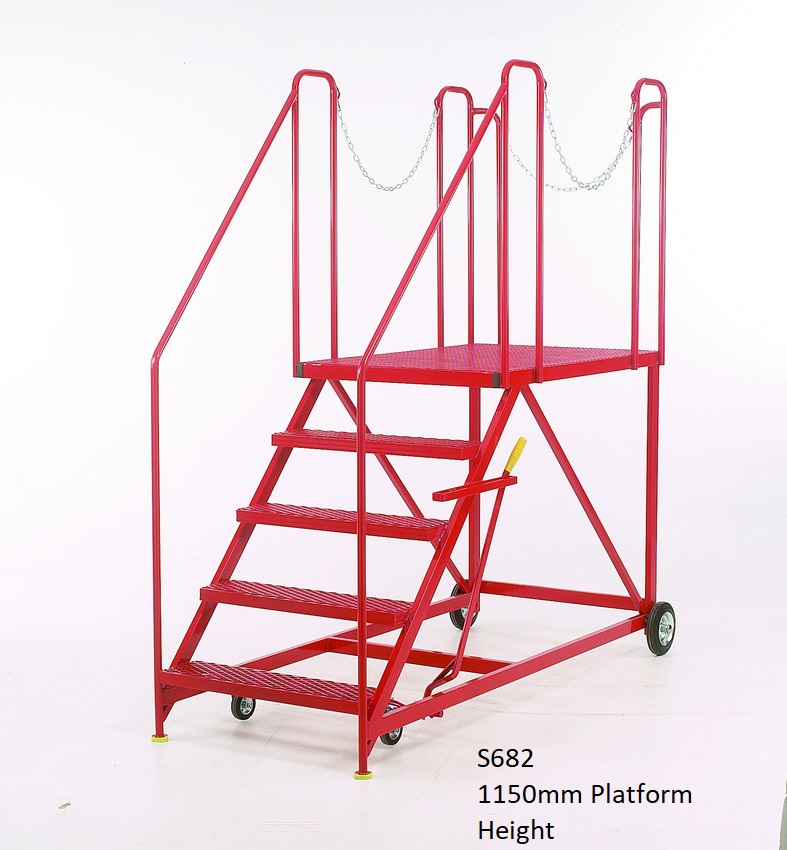

| 5 | 2650 | 1150 | 2140 x 960 x 2060 | WGS682 | 98 | ||
| 6 | 2880 | 1380 | 2370 x 960 x 2250 | WGS683 | 107 | ||
| 7* | 3110 | 1610 | 2600 x 960 x 2440 | WGS684 | 116 | ||
| 8* | 3340 | 1840 | 2830 x 960 x 2630 | WGS685 | 125 | ||
