Description

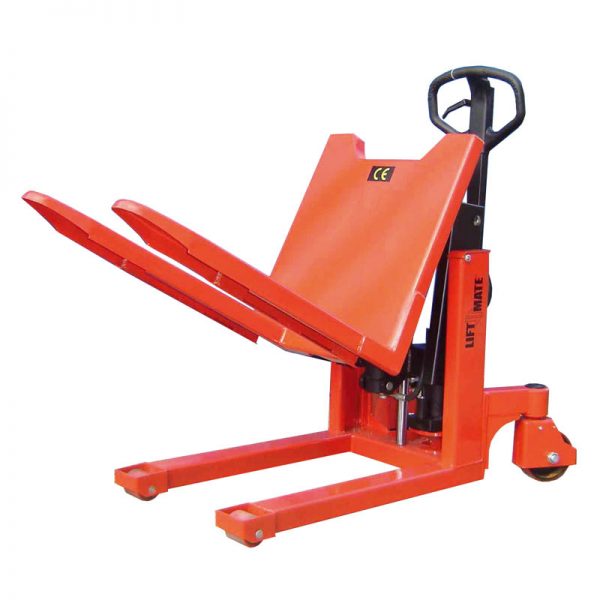

Manual Pallet Tilter
Manual pallet tilters assist in tilting a pallet, crate or stillage towards the operator and thus making it easy to reach inside.
The pallet tilters are especially useful where palletised good are loose small items that need to be picked out one by one.
- Forks can be tilted up to 90°
- Handle can be turned and locked in position away from the work area
- Supplied with parking brake and foot protectors on castors
- Lift and tilt performed by hand hydraulic action
Technical Specifications:Manual Pallet Tilter
- Capacity: 1000kg
- Max. Lift Height: 285 mm
- Angle of Tilt: up to 90°
- Lift / Tilt Manual
- Length of Forks: 800 mm
- Width over Forks: 560 mm
- Lowered Fork Height: 85 mm
- Overall Length: 1325 mm
- Overall Width: 638 mm
- Overall Lowered Height: 750 mm
- Wheels: Polyurethane
- Approx. Weight: 178kg

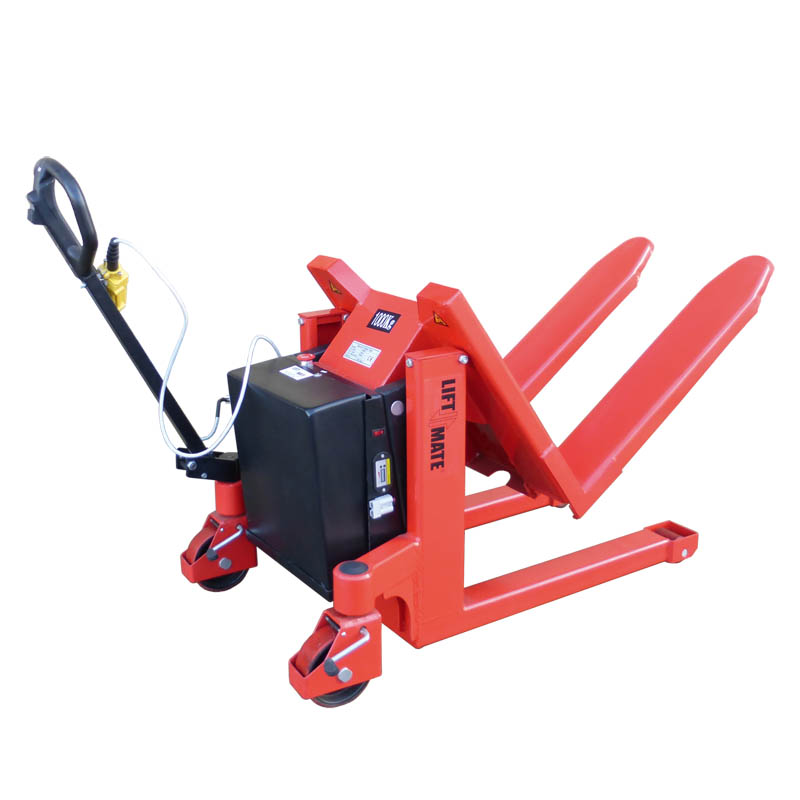

Electric Manual Pallet Tilter

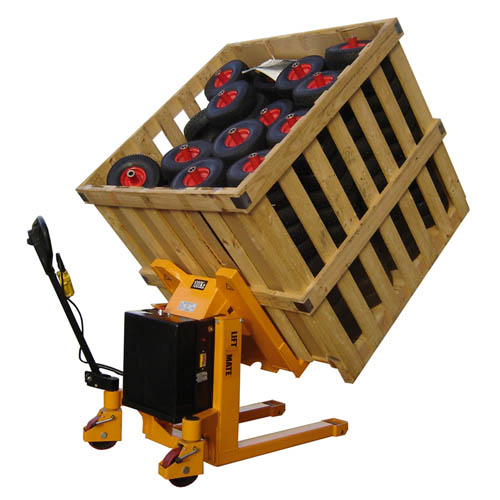

Electric pallet tilters assist in tilting a pallet, crate or stillage towards the operator and thus making it easy to reach inside.
The electric pallet tilters are especially useful where palletised good are loose small items that need to be picked out one by one.
- Forks can be tilted up to 90°
- Handle can be turned and locked in position away from the work area
- Supplied with parking brake and foot protectors on castors
- Lifting and lowering functions are built into the handle
- Tilting action is operated by remote control
Technical Specifications: Electric Pallet Tilter
- Capacity: 1000kg
- Max. Lift Height: 285 mm
- Angle of Tilt: up to 90°
- Lift / Tilt Electric
- Length of Forks: 800 mm
- Width over Forks: 560 mm
- Lowered Fork Height: 85 mm
- Overall Length: 1410 mm
- Overall Width: 638 mm
- Overall Lowered Height: 750 mm
- Wheels: Polyurethane
- Approx. Weight: 185kg
