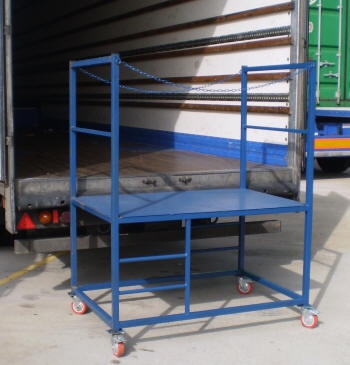

Description
Platform Specifications
Platform Width: 2000 mm
Platform Depth: 1250 mm
Platform Height: 1280 mm
Handrail Height: 1000 mm
Platform Load Capacity on standard wheels: 800 kg
Optional Jacking Legs
Not all lorries and trailers can be unloaded on flat and level concrete yards. Sometimes it may be uneven hard standing, or a pothole, or maybe a drain cover or rainwater gully. These jacking legs are fitted to each corner and can be lowered to raise one corner up to level the platform. Simply the wind the handle down and the large foot will raise the platform.
Please Note Though – The fitment of these jacking legs to the platform has been designed to raise one corner to level the platform. We do not recommend using all 4 legs to raise the platform to give height adjustment. Although the capacity of the legs will take it, with all 4 legs raised, there will be a degree of wobble on the platform.
