Description

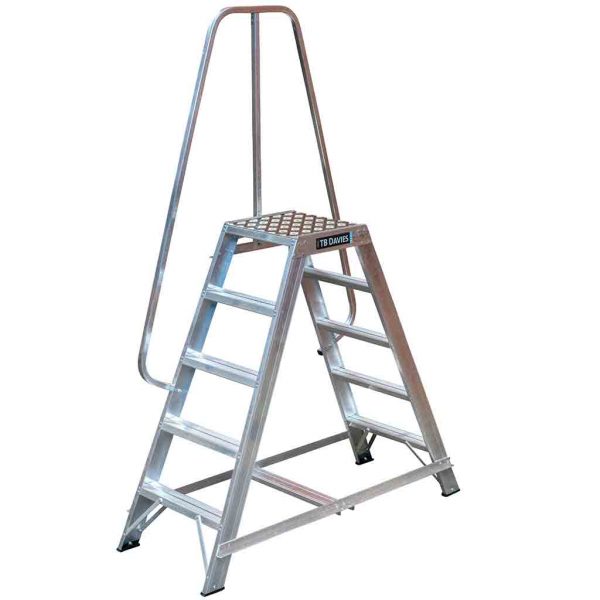

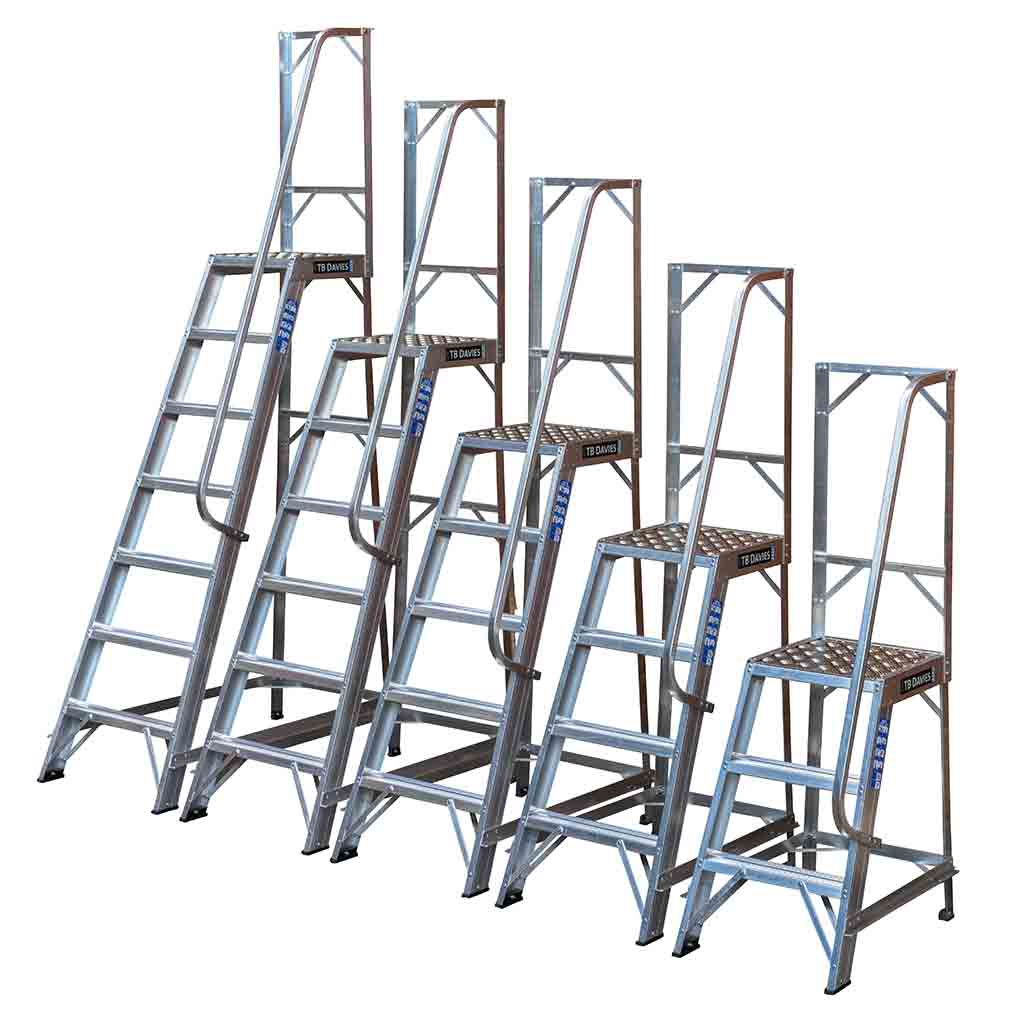

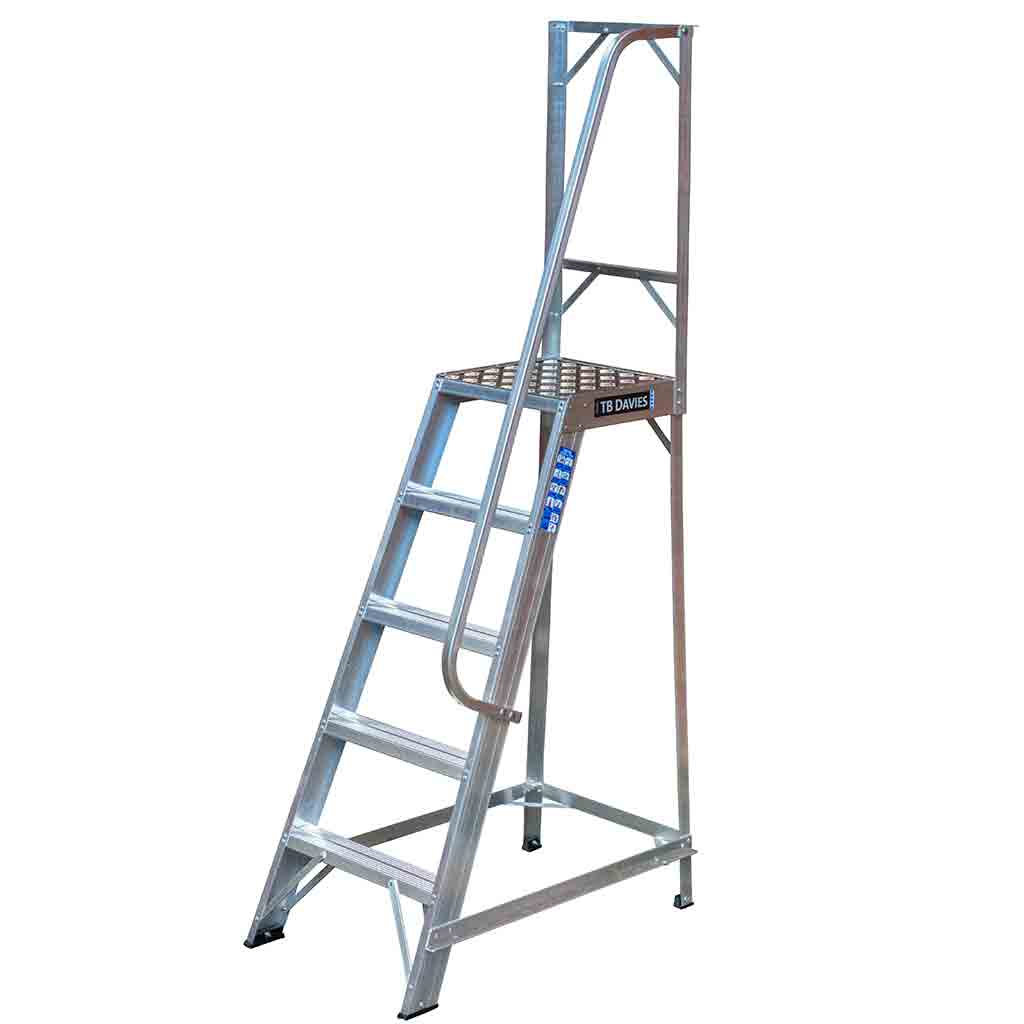

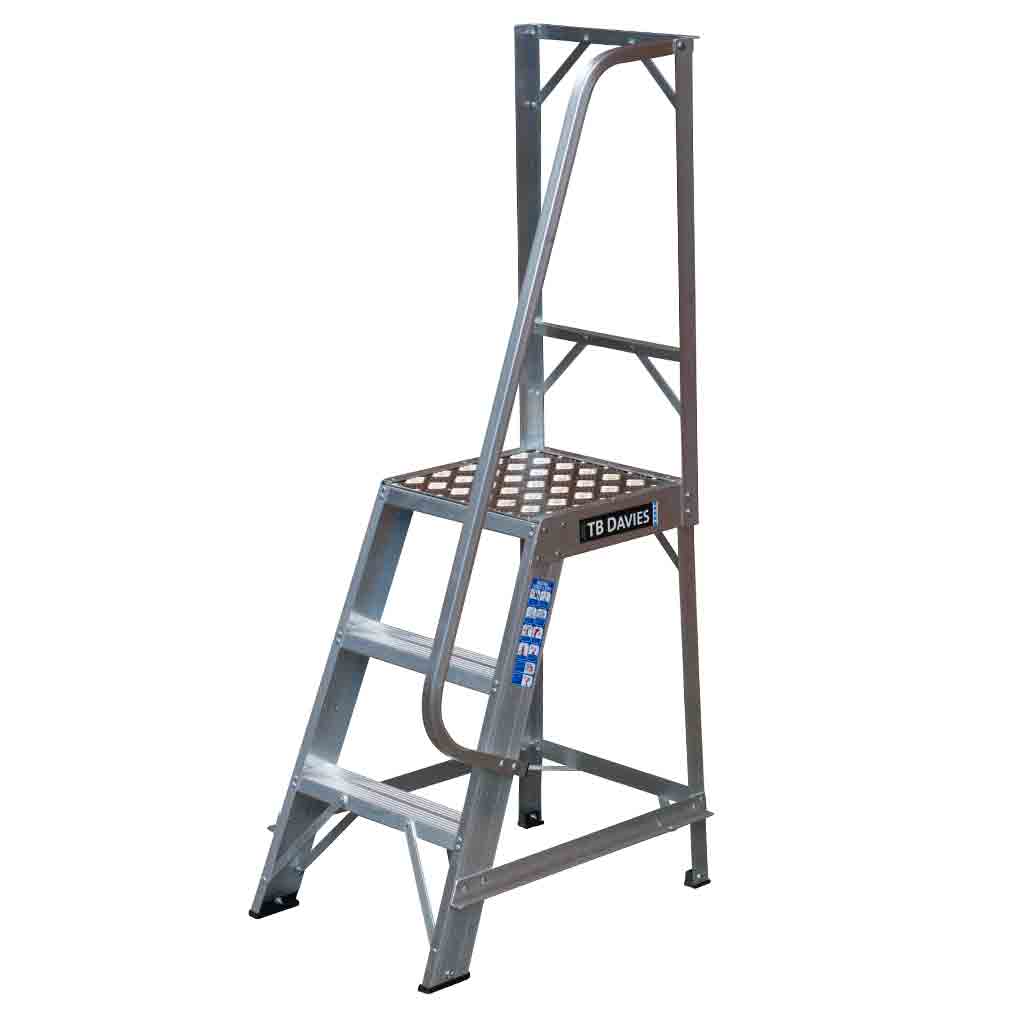

Fixed aluminium platform step available as single or double sided option, complete with handrail (Supplied Loose). Constructed from heavy-duty channel section aluminium and used for a variety of applications including routine maintenance on machinery in factory environments.
Product Features
- 80mm deep serrated treads
- Comfortable 421 x 405 x 70mm checker-plate platform
- Single handrail supplied for additional safety
- Rear handrail supplied on single sided steps
- 3-year warranty
- Max Load 150kg
Prod Code Approx. Working Ht (m) Platform Ht (m) Overall Height (m) Overall Depth (m) Weight (kg)
Single Double Single Double Single Double
1271-003 1272-003 2.3 0.7 1.5 0.7 1.0 4.0 5.0
1271-004 1272-004 2.6 1.0 1.8 0.8 1.2 5.0 6.0
1271-005 1272-005 2.8 1.2 2.0 1.0 1.4 6.0 7.5
1271-006 1272-006 3.1 1.5 2.3 1.1 1.6 7.0 9.0
1271-007 1272-007 3.3 1.7 2.5 1.2 1.8 8.0 10.5
