Description
The “Hercules” mobile lorry access step has been designed with rough use in mind! When mobile steps are used in lorry parks and in a loading bay environment, they are liable to constant use and often moved and knocked with forklifts. We have made our heavy duty access ladder from a substantial 40x40x3mm box section and are a fully welded one piece construction.
The angle of the steps is 45 degrees, an easy slope step, which allows the user to walk down forward facing. The treads are our hi-grip steel treads ofering excellent grip in in wet oily conditions.

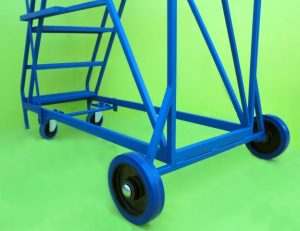

This 6 step mobile ladder has a platform height of 1250mm and is fitted with 2 substantial 200mm nylon wheels and 2 smaller 100mm diameter wheels housed in swivel castors allowing easy movement. On the side of the steps is mounted a brake lever which disengages the smaller wheels when in use allowing a safe stable platform for the steps.

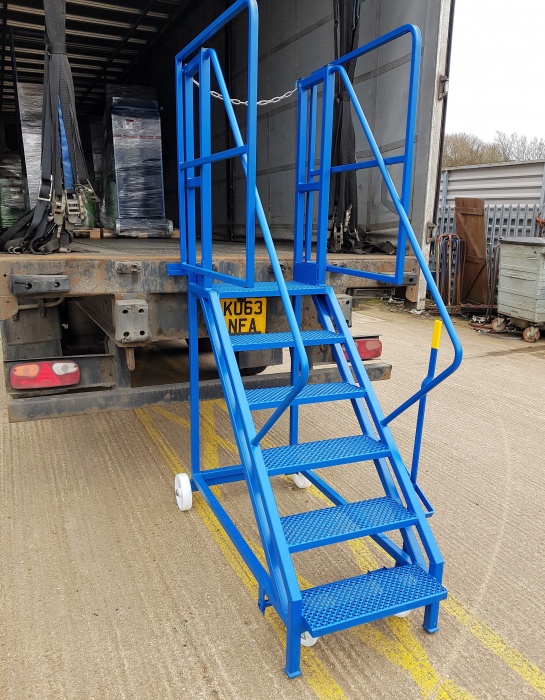

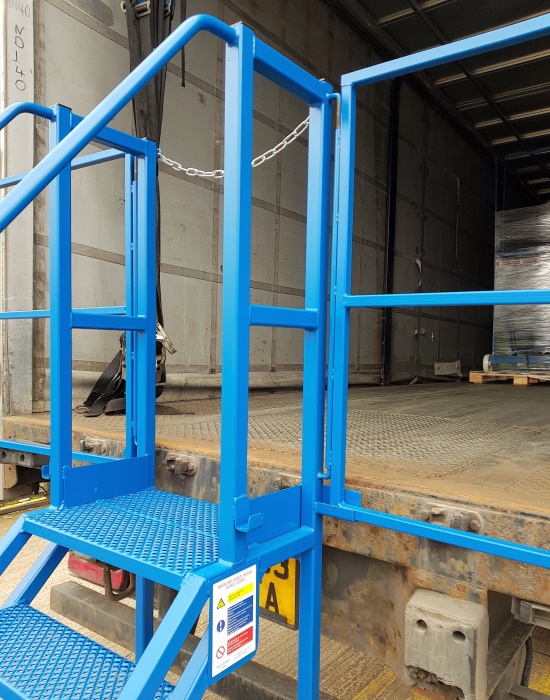

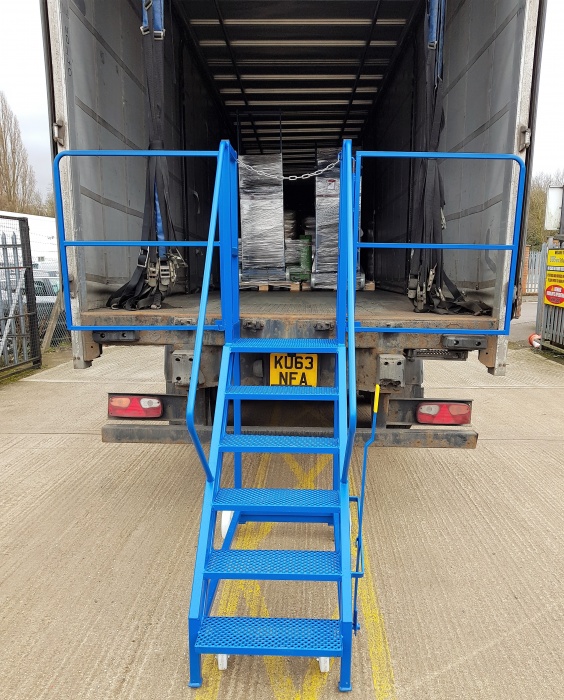

These bespoke steps have been modified with bat wing style swing gates which fold out and gate off the open end of the trailer. These folding gates offer a safe working space for loaders or drivers when working on, or in, a lorry or trailer.

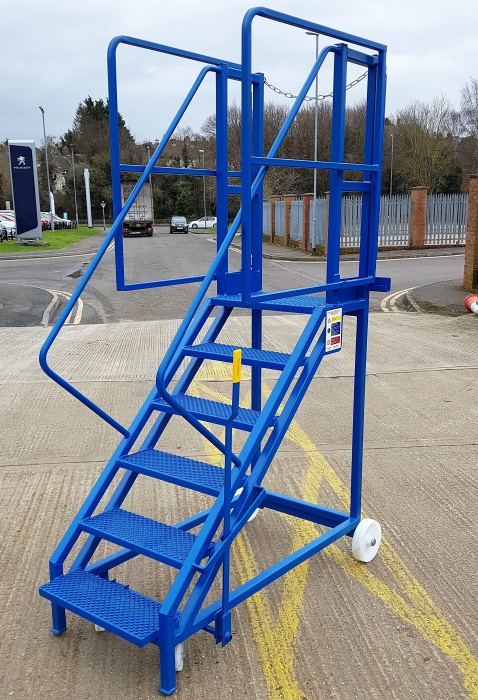

When not in use, the folding gates fold up and lock shut against the access step side frames. To use the step, simply roll the step to the rear of the lorry, engage brake lever and then simply lift up and swing out the gates into position.

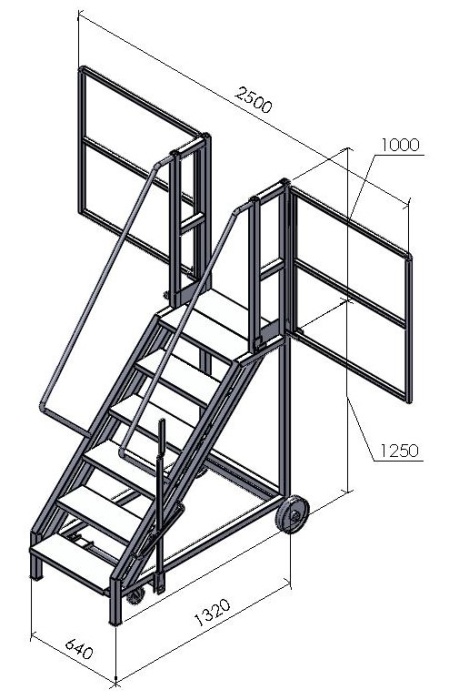

- 1250mm platform height
- 45 degree slope treads
- Internal Tread width of 550mm
- O/A width with wings out is 2.5m
- Steel construction
- Painted finish – Blue RAL501 as standard
