Description
Manufactured from steel plate with oil tight welds the skip has a dampened tipping action, which is controlled from the safety of the cab (no wires to pull no climbing on the mast of the forklift truck.
It automatically releases by lowering onto the edge of the skip and re-locks by lowering again after the load has been tipped. The unit comes complete with 2 fixed, 2 swivel nylon castors and safety securing chain.
Please Note: This unit is not designed for use with wet sand, cement, concrete or other similar “wet loads” because of the potential to overload it and cause significant damage to the locking mechanism, which would affect your warranty rights.
Available in 5 sizes, from 250L volume to 1600L volume
Made to order – Please allow 5-6 weeks for delivery
| Model | External size | Nominal Volume | Maximum Load | Colour | Tare Weight |

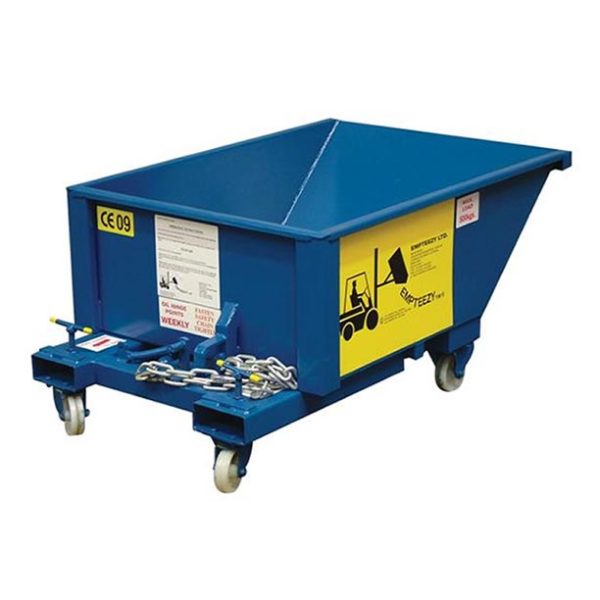

| ATS2C | L1275 x W818 x H568mm | 0.25m³ | 500kg | Blue RAL 5019 | 118kg |

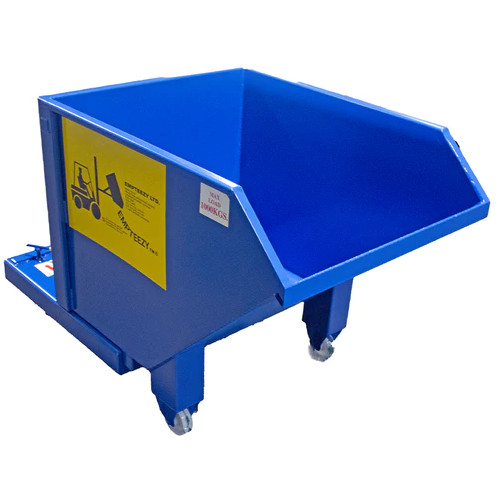

| ATS5C | L1450 x W820 x H905mm | 0.5m³ | 800kg | Blue RAL 5019 | 165kg |
| ATS7C | L1530 x W990 x H958mm | 0.7m³ | 1000kg | Blue RAL 5019 | 184kg |

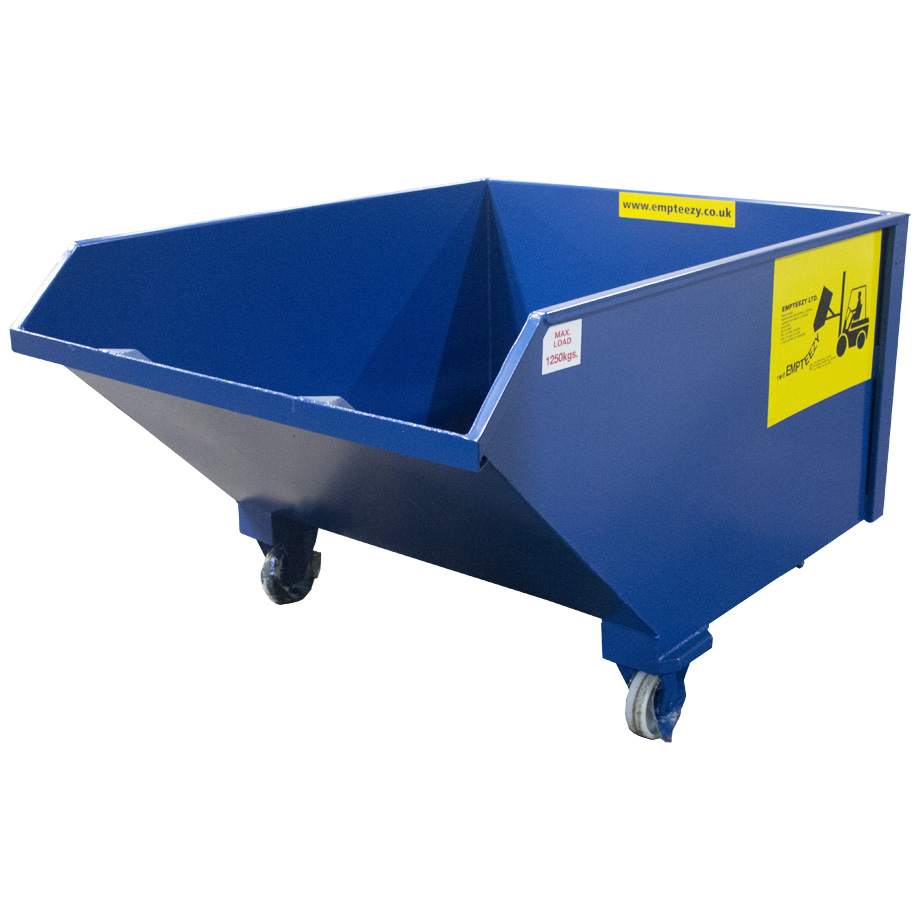

| ATS11C | L1760 x W1290 x H958mm | 1.1m³ | 1250kg | Blue RAL 5019 | 202kg |
| ATS16C | L1790mm x W1580mm x H1018mm | 1.6m³ | 1500kg | Blue RAL 5019 | 204kg |
