Description

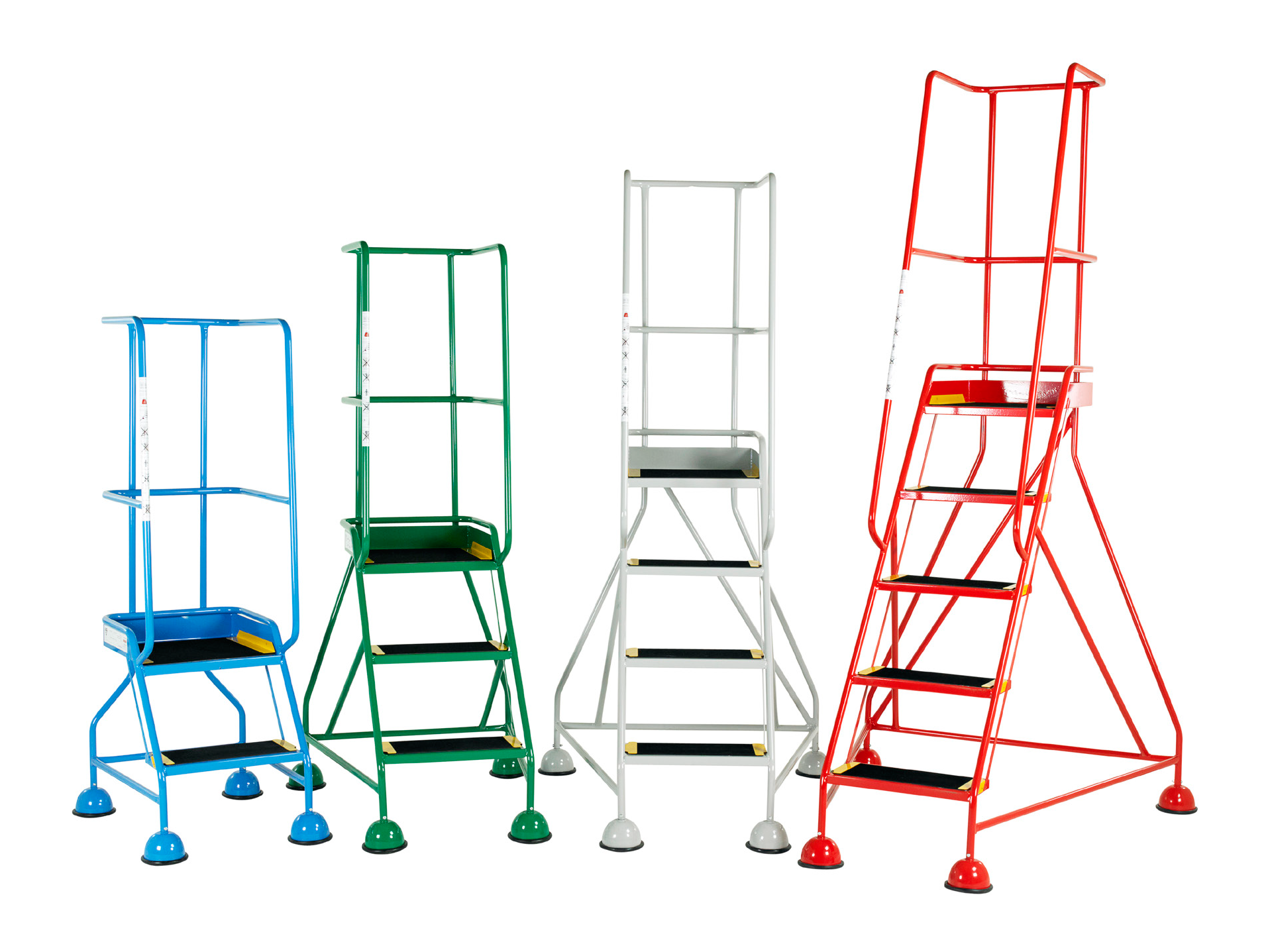

Classic Colour BS Range Steps
Close fitting continuous single rail guard around top platform, extending down each side of stairway as a short handrail.
Fully welded throughout with ribbed rubber treads. Anti-slip treads also available.
Rubber rubber models are complete with tread clamps ensuring high visibility & preventing edges from peeling.
Finish: All colour finishes are hard-wearing powder coated.
Fitted with dome covered spring loaded, 50 mm swivel castors which retract when weight is applied to the steps, giving firm contact with the floor.
Dome covers have a double rolled bottom edge together with a protective cover strip & grey non marking tyres, giving a neat appearance and reasonable protection to carpets and other floor surfaces.
Classic Castors system
Fitted with dome covered spring loaded swivel castors which retract when weight is applied to the steps, giving firm contact with the floor. Dome covers have a double rolled bottom edge together with a protective cover strip and grey non marking tyres.
Tread Clamps
Ribbed rubber treads models are supplied complete with tread clamps ensuring high visibility and preventing edges from peeling.
| Treads (inc platform) | 2 | 3 | 4 | 5 |
|---|---|---|---|---|
| Average working height | 2m | 2.26m | 2.52m | 2.77m |
| Platform height mm | 508 | 762 | 1016 | 1270 |
| Platform width mm | 406 | 406 | 406 | 406 |
| Platform depth mm | 406 | 406 | 406 | 406 |
| Overall H (inc rails) mm | 1460 | 1715 | 1965 | 2220 |
| Overall width mm | 615 | 800 | 1000 | 1200 |
| Overall depth mm | 730 | 915 | 1075 | 1240 |
| Weight kg | 14 | 16 | 19 | 22 |
| Ribbed Rubber Treads | ||||
| Order Ref | S360 | S362 | S364 | S366 |
| Anti Slip Treads | ||||
| Order Ref | S361 | S363 | S365 | S366 |
